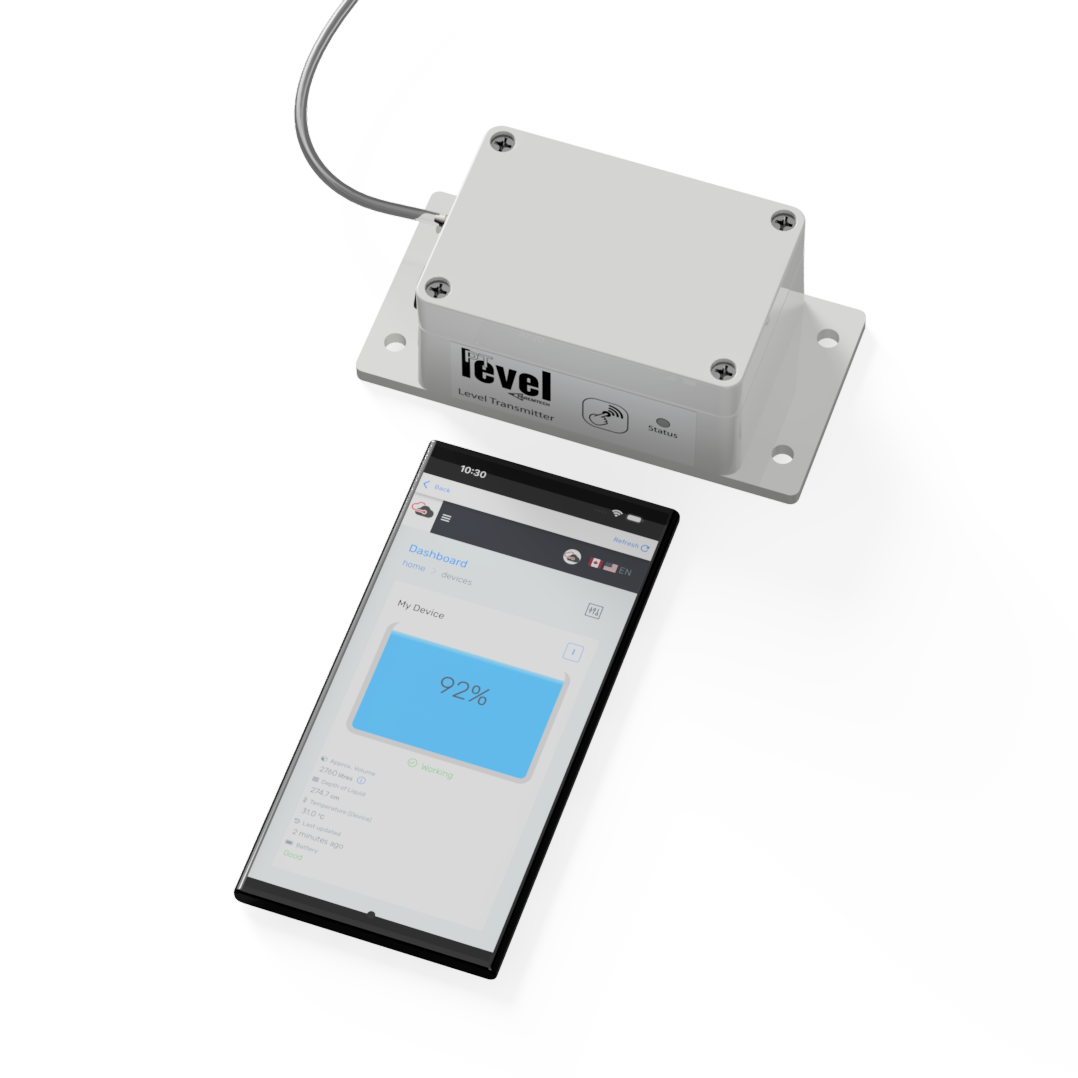

PTLevel Wired WiFi

How does the Wired WiFi PTLevel work?

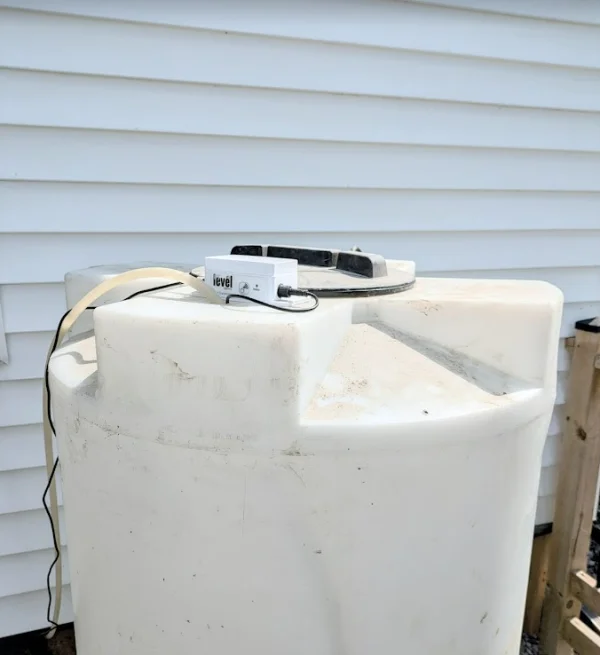

• First the transmitter is mounted on the top of your tank where it is connected to the provided 13′ of 5/32″ tubing. You can order more tubing if needed.

• The other end of that small tubing is then connected to the weighted “Pressure Chamber”.

• After the Pressure Chamber is lowered into your tank, the liquid pressurizes into the chamber and creates an air pocket which is then analyzed by the PTLevel every 2 minutes.

• The data is sent to our online services using your WiFi internet connection, where it is further processed into a level reading, alerts, history graphs, and more.

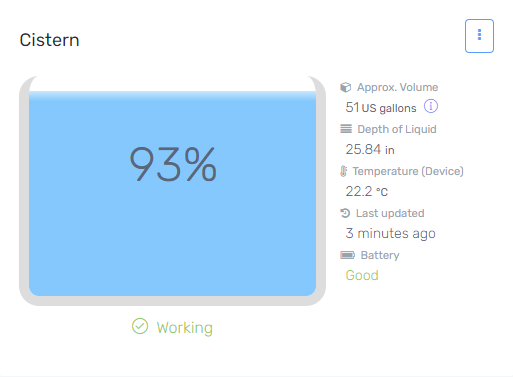

• After the installation, you can start reviewing your liquid level data right away via the App or at ptdevices.com.

Features and Specifications

• Communication online using WiFi connection to the internet.

• Powered by a provided low voltage power supply.

• 13′ of tubing is supplied, but you can upgrade up to 25'; maximum depth of liquid monitoring is 18'.

• Weather resistant design.

• -40°C to 85°C temperature range.

• Pressure chamber dimensions – 250mm total height, 91mm base diameter, 26mm base height, 22mm tube OD.

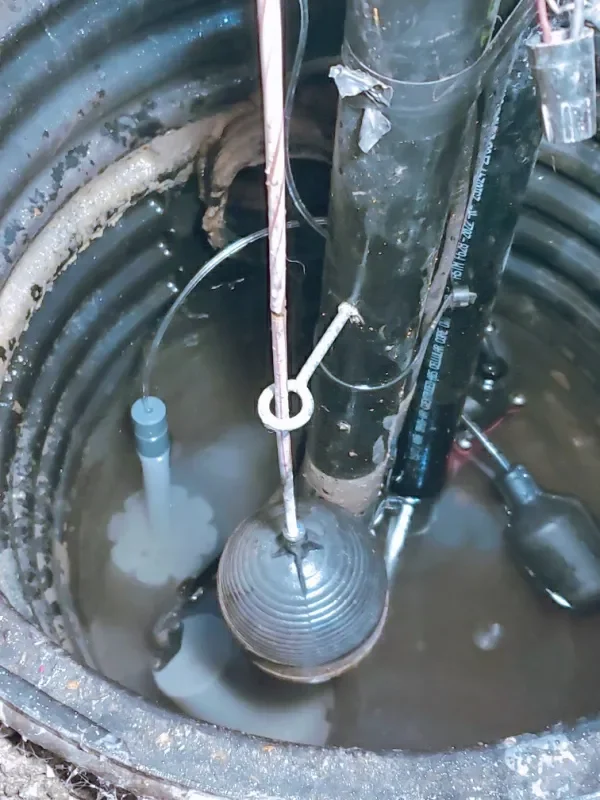

Sump Monitoring

The PTLevel pressure sensors are not affected by temperature, freezing, frost, or dirt. So, they can handle your most challenging, dirty, and humid environments like monitoring your sump.

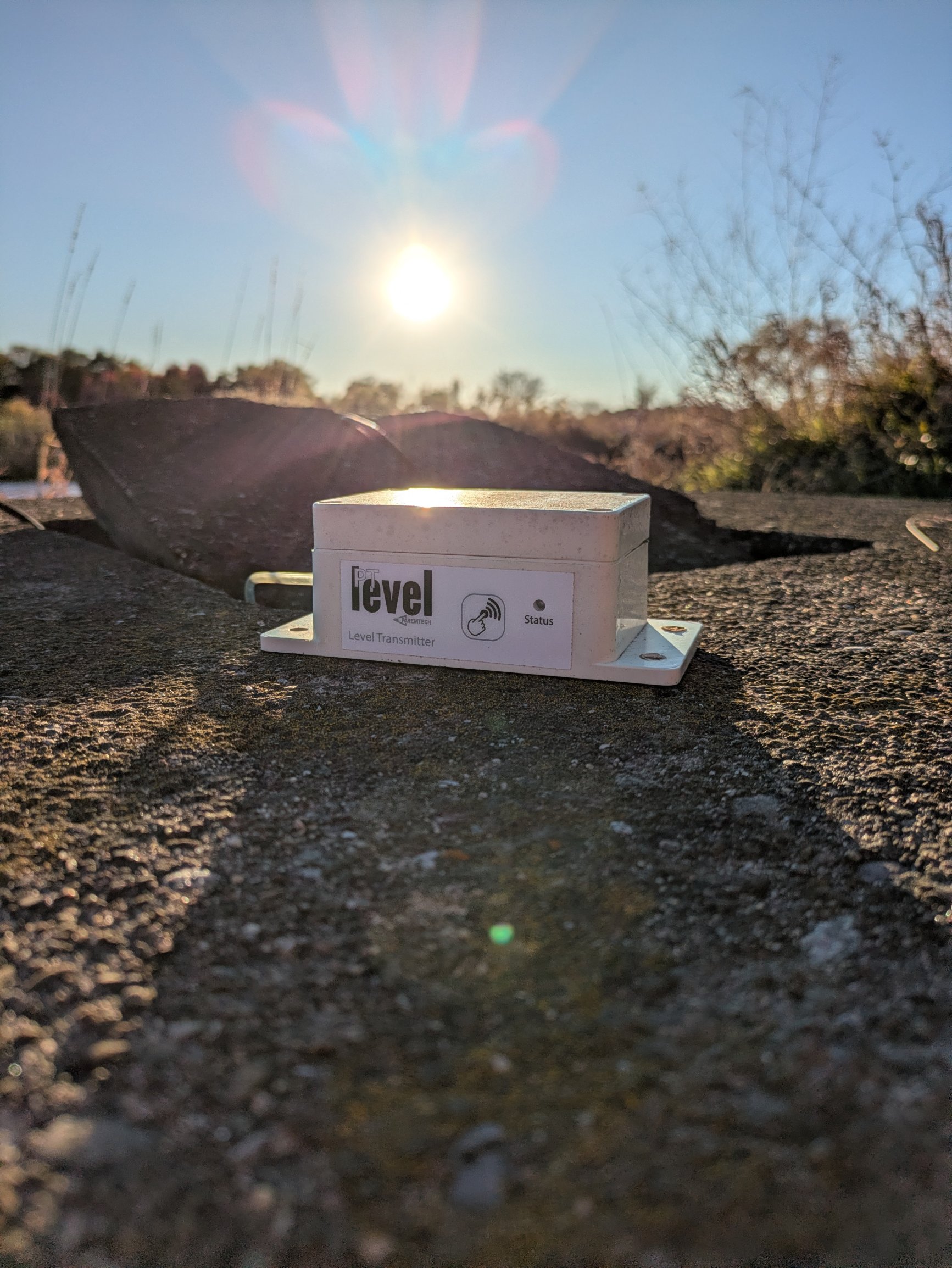

Cistern Monitoring

Weather resistant and robust, the Long Range Wireless PTLevel has a range of up to 1km (0.62miles).

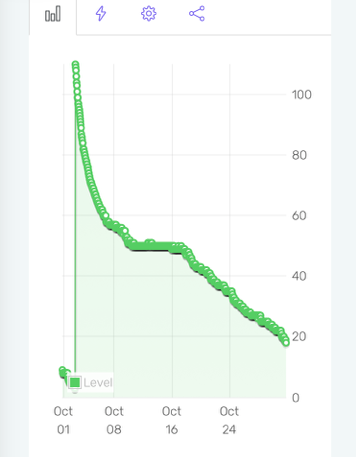

Receive high and low level alerts, view history graphs, and get online updates as frequently as every 4 minutes.

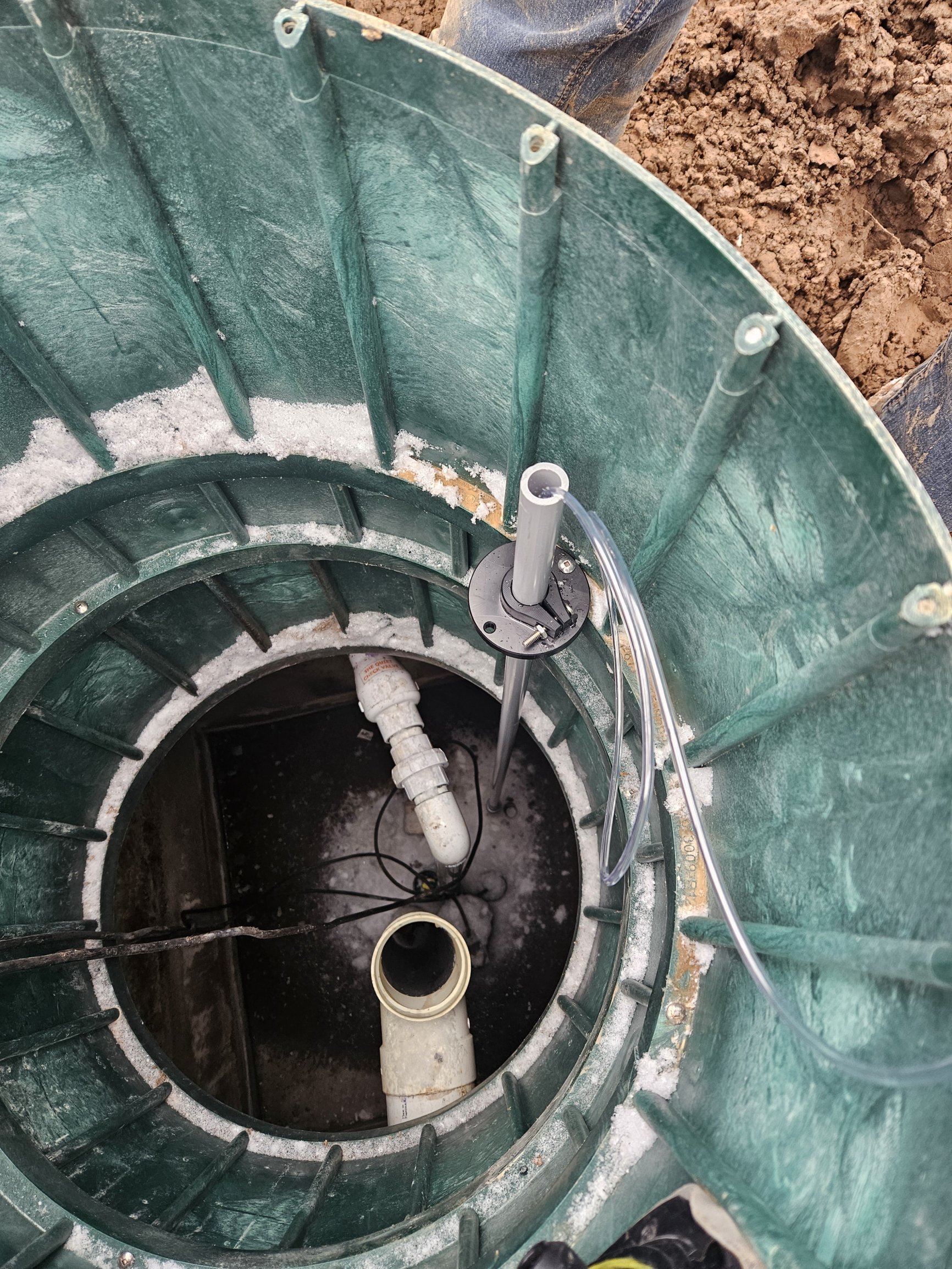

Septic Monitoring

High liquid levels indicate you may be experiencing a blockage in your tank bed.

Consistent low levels could indicate a leak in your pipes or a tank leak.
