PTLevel

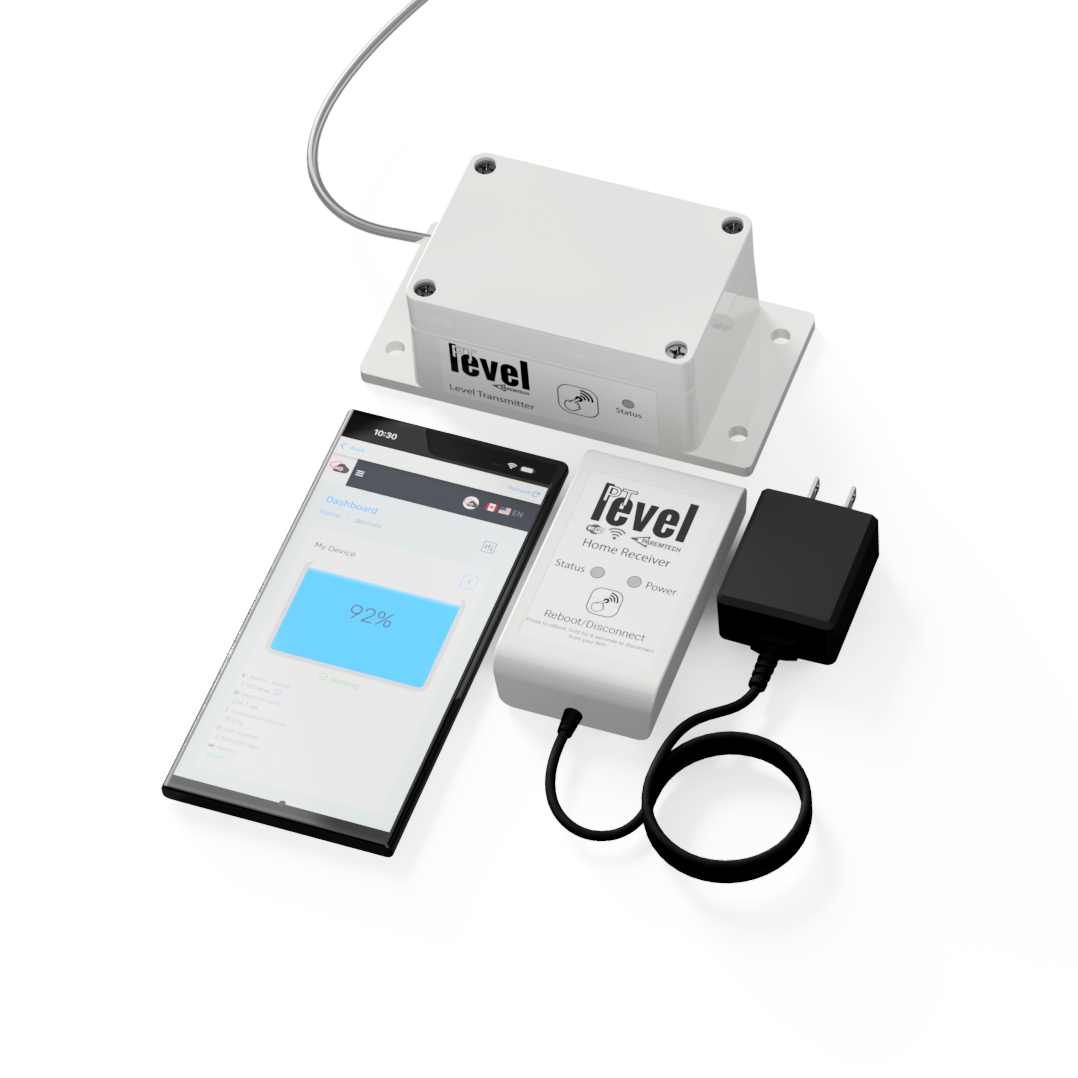

PTLevel Long Range Wireless
$299.99
usd
An easy to install, long range, battery powered liquid level monitor kit.
Options
The Long Range Wireless PTLevel makes it easy to monitor water and other liquid levels remotely, without needing Wi-Fi or power at your tank. Its weather-resistant, battery-powered transmitter communicates with a receiver connected to your home Wi-Fi, sending level information to your free PTDevices account.

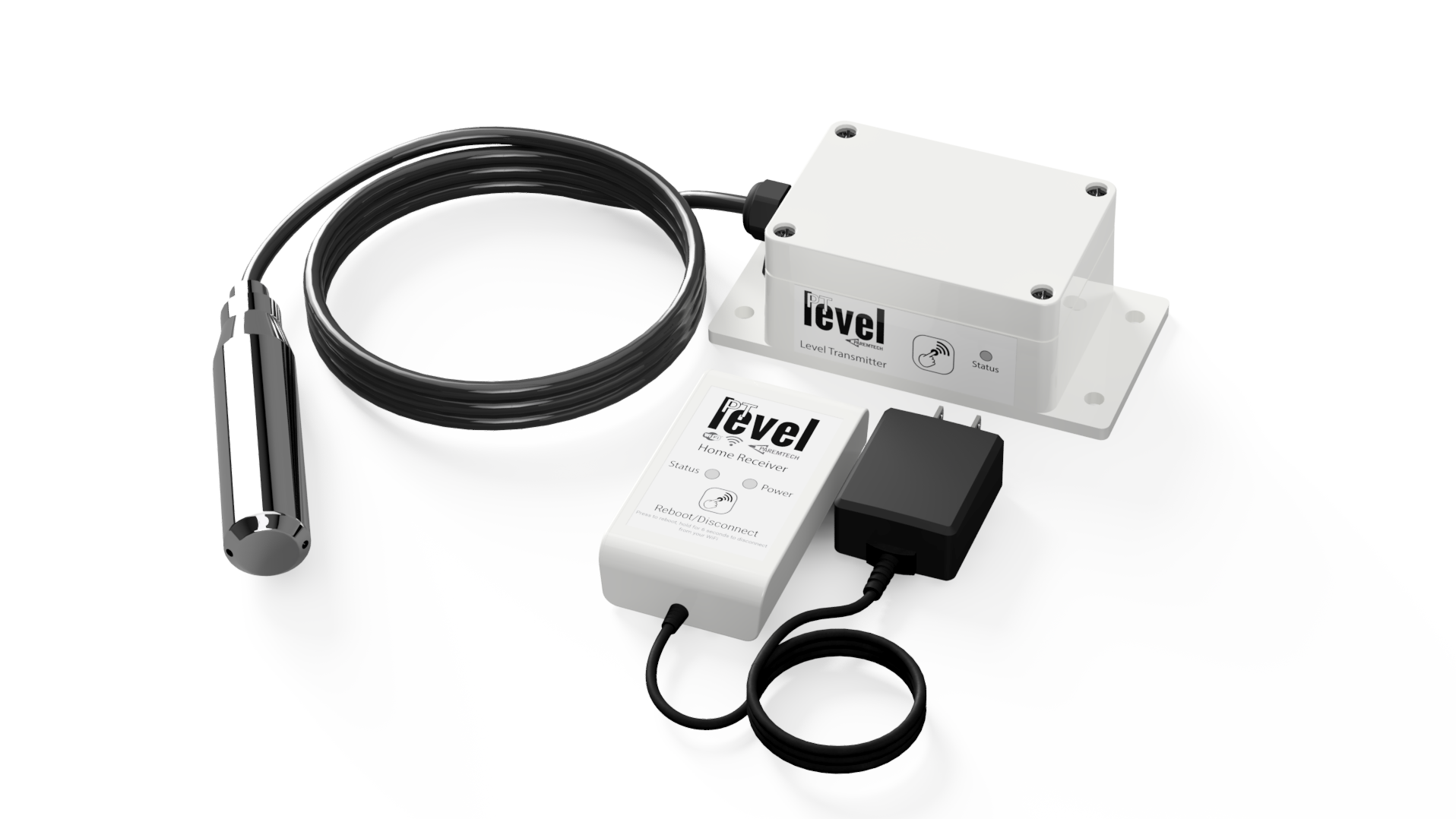

The Deep Well PTLevel makes it easy to monitor water and other liquid levels remotely, without needing Wi-Fi or power at your tank. Its weather-resistant, battery-powered transmitter communicates with a receiver connected to your home Wi-Fi, sending level information to your free PTDevices account. Made with a durable and chemical resistant stainless-steel pressure sensor coming in 30' and 70' measuring variations.
Accessories

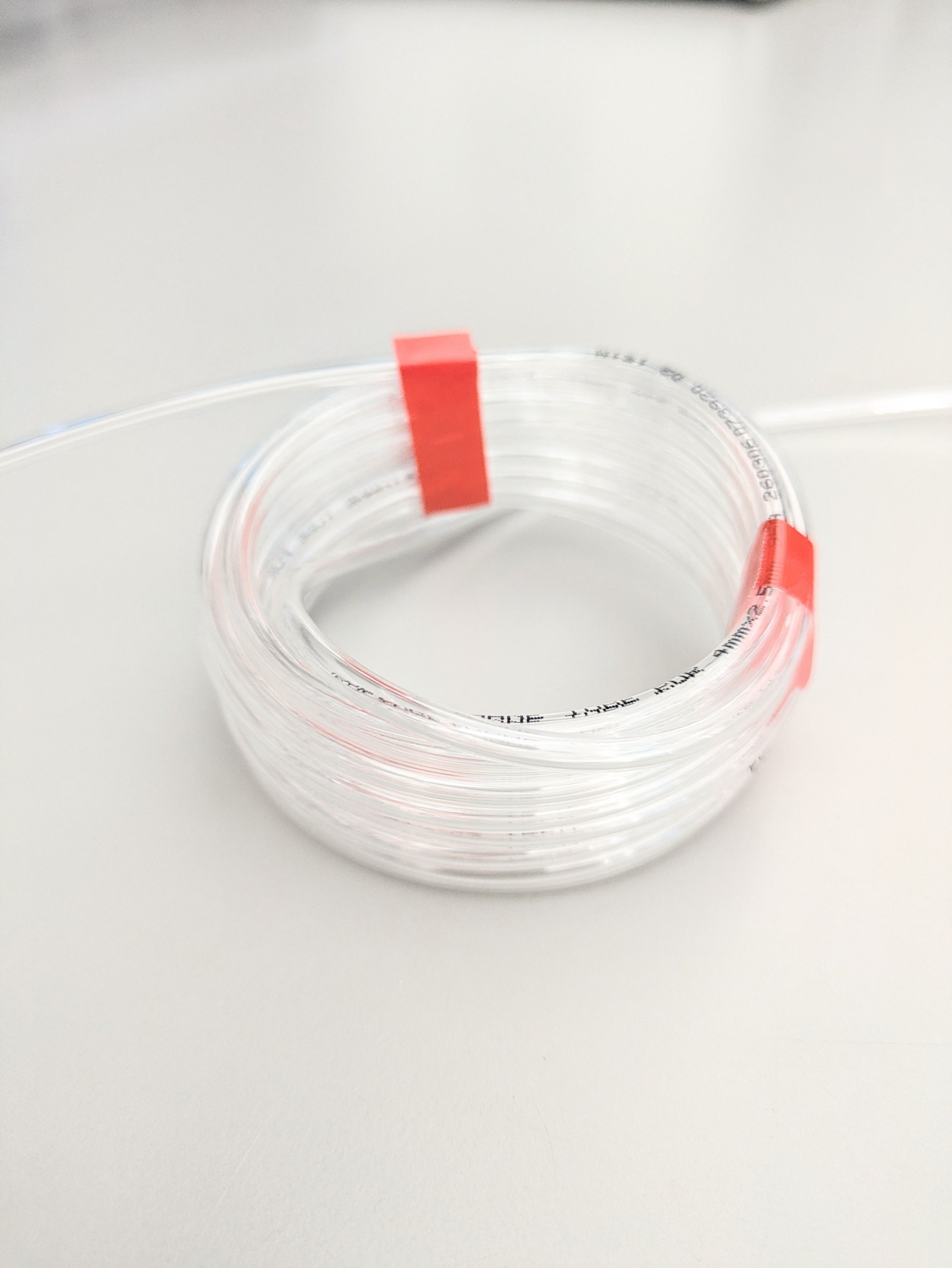

25' Tubing

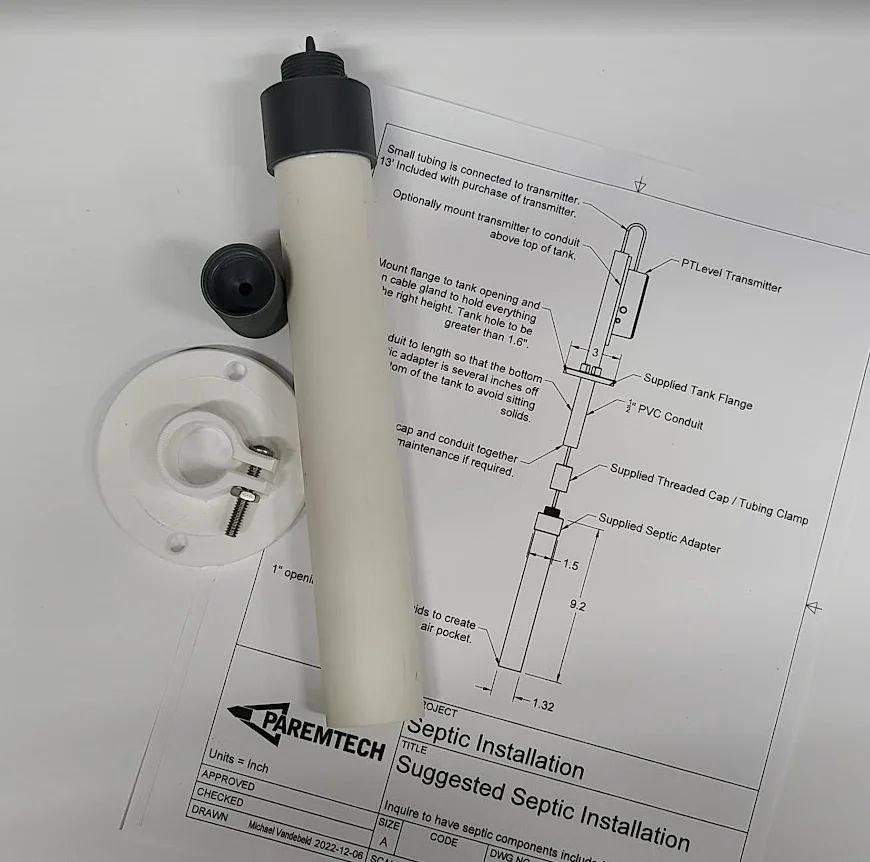

Septic Adapter Kit (Instead of the regular Pressure Chamber)
- 30 day money-back guarantee
- 2 year warranty
- Ships same or next day
- Made in Canada
How does the Long Range Wireless PTLevel work?

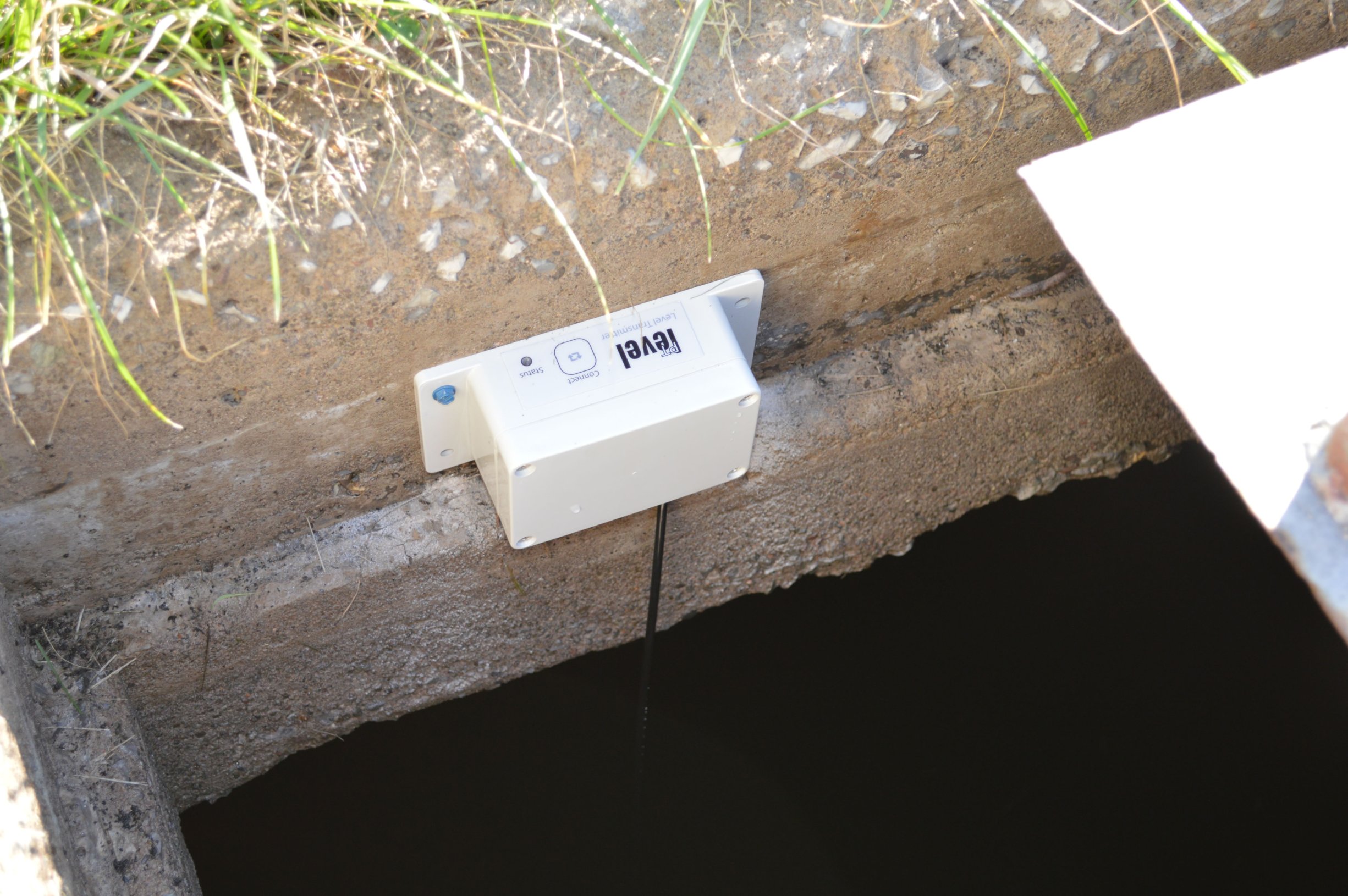

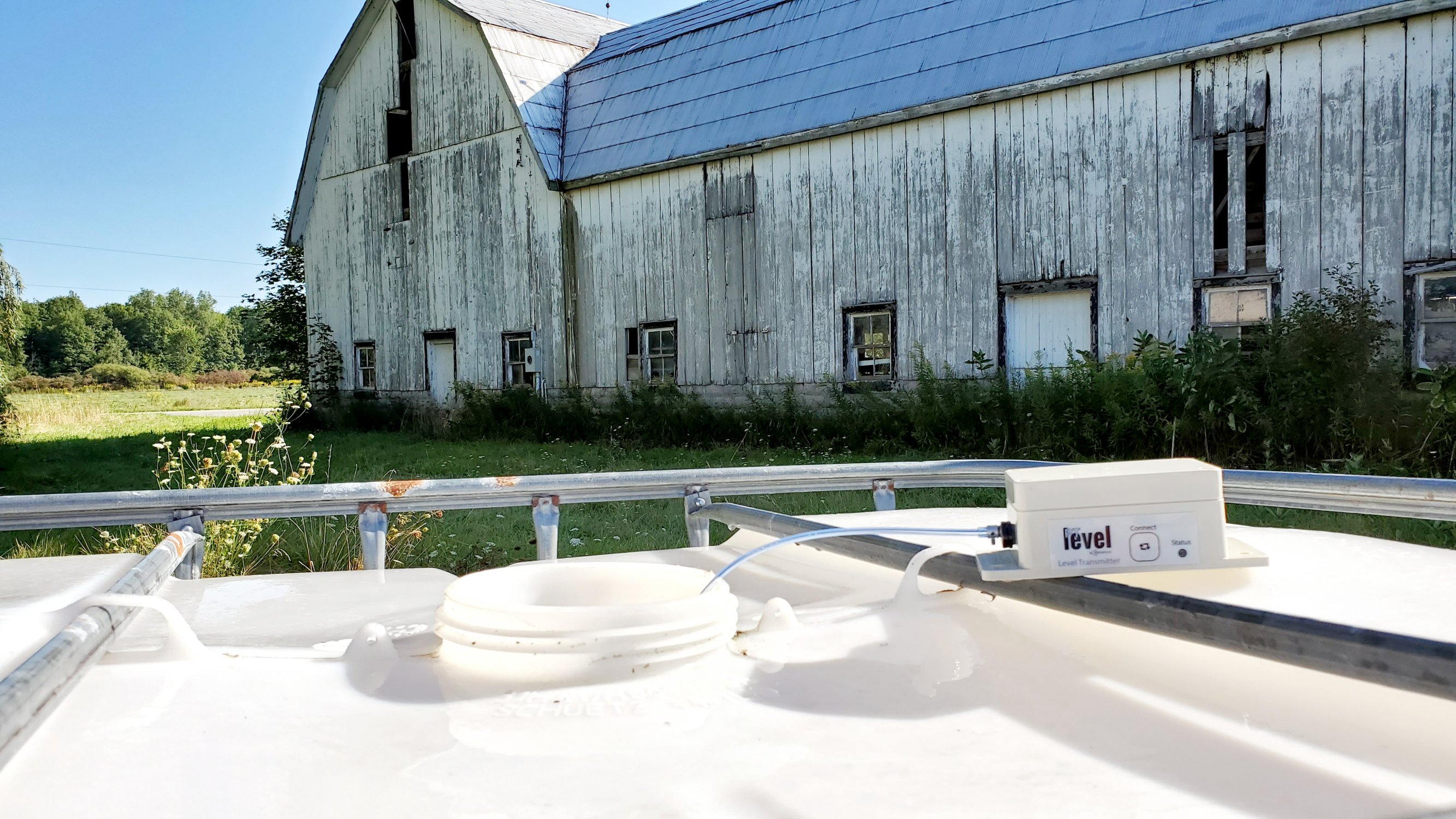

The transmitter is mounted on the top of your tank where it is connected to the provided 13′ of 5/32″ tubing. You can order more tubing if needed.
The other end of the tubing is then connected to the weighted Pressure Chamber.
When the Pressure Chamber is lowered into your tank, the liquid pushes into the chamber and creates a pressurized air pocket.
That air pocket is then read by the PTLevel using a smart power saving schedule. More information on this in the knowledgebase
The data is sent to our online services over the long range wireless link and then using your WiFi internet connection, where it is processed into a level reading, alerts, and more.
Features and Specifications
Long distance low power wireless technology. 1 km or more can be achieved depending on the environment.
Runs on 4 AA batteries for years depending on how you adjust the reporting schedule of the device.
13′ of tubing is supplied, but you can upgrade if needed. Max depth monitoring is 18' of liquid.
Weather resistant design. It can be installed outside with no issue.
-40°C to 85°C temperature range.
2 free alert points via SMS or email.
2 year warranty, made in Canada.

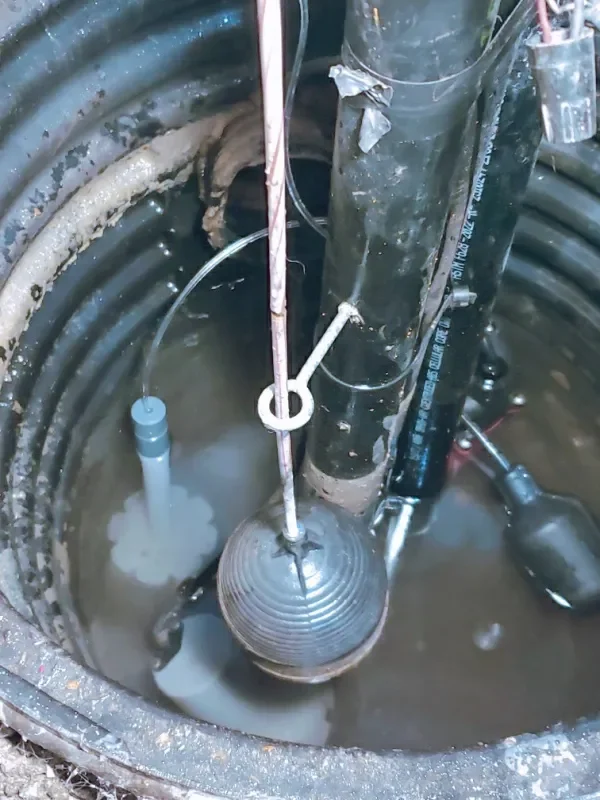

Sump Monitoring
The PTLevel pressure sensors are not affected by temperature, freezing, frost, or dirt. So, they can handle your most challenging, dirty, and humid environments like monitoring your sump.

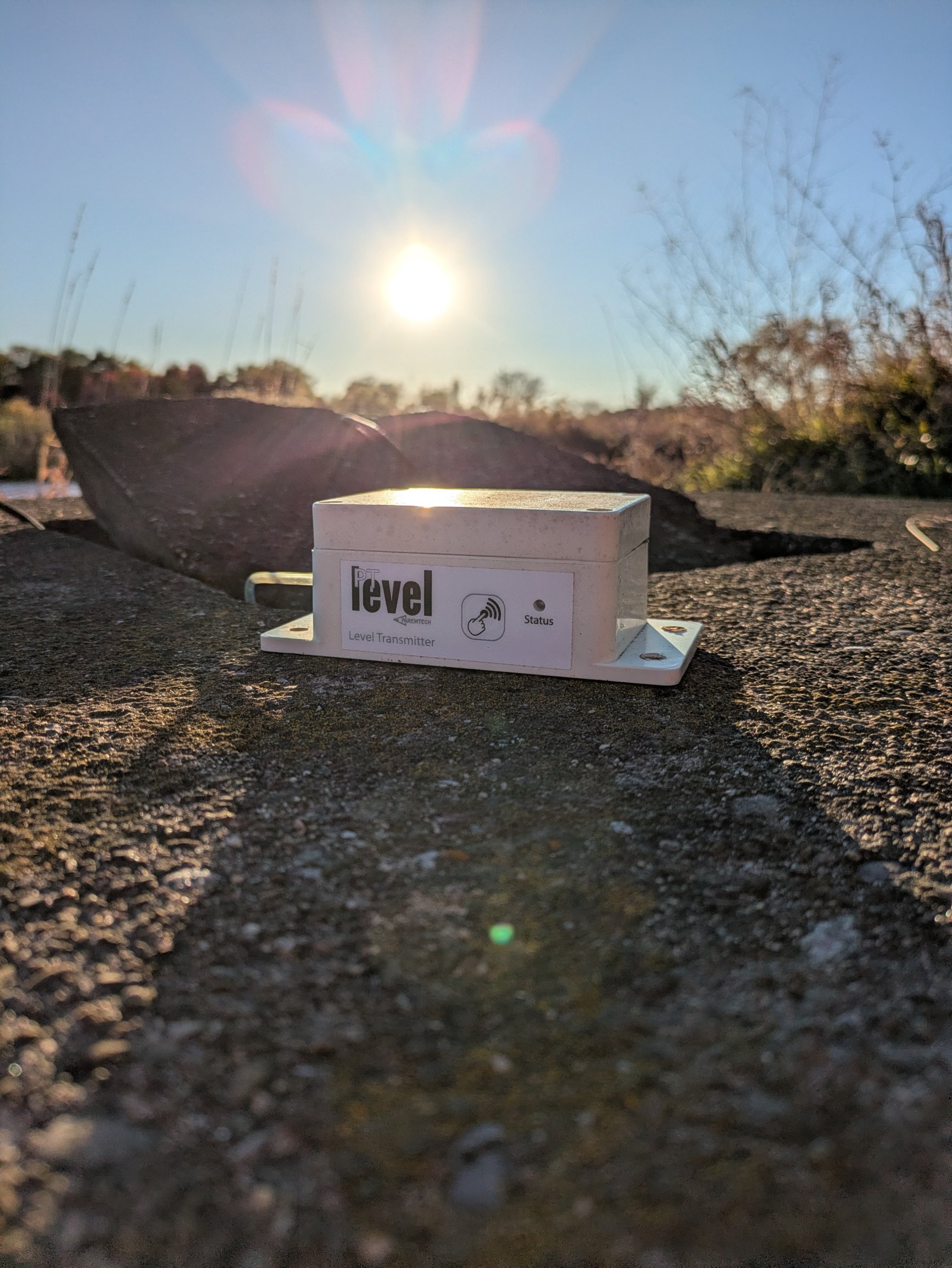

Cistern Monitoring
Weather resistant and robust, the Long Range Wireless PTLevel has a range of up to 1km (0.62miles).
Receive high and low level alerts, view history graphs, and get online updates as frequently as every 4 minutes.

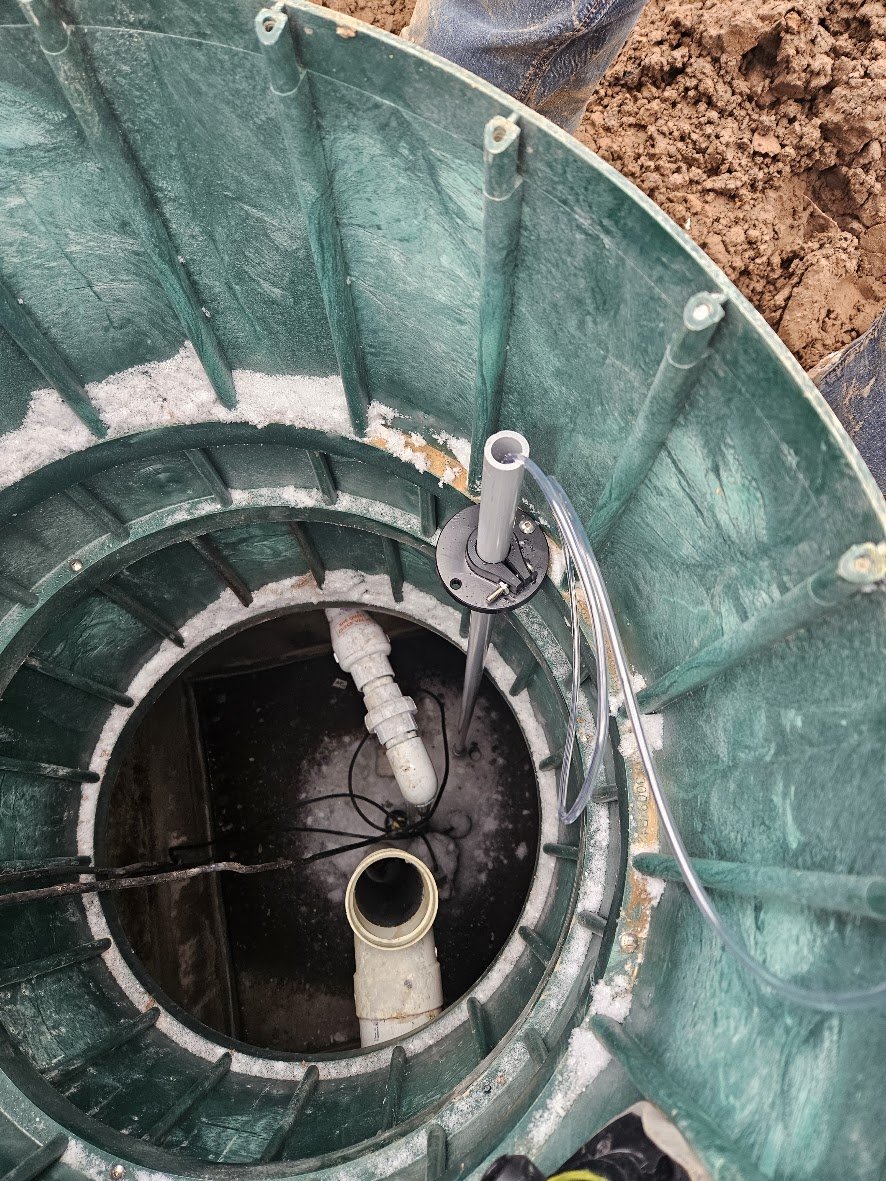

Septic Monitoring
High liquid levels indicate you may be experiencing a blockage in your tank bed.
Consistent low levels could indicate a leak in your pipes or a tank leak.
Dashboard
Your Dashboard gives you a quick overview of your tank level, battery life, and troubleshooting information ("Working", "Not Connected", etc). From here you can access additional features and settings.
Usage History
Your usage history graphs allow you to see water level history (up to 1 month of included history) and battery life.
Power and Reporting
You can change your default settings to update more or less frequently. The default settings will allow your batteries to last 2+ years. Many PTLevel users prefer to have hourly reports (check the level every 30 minutes and report online every 2 checks).
Settings
Within your settings, you can change your tank depth. Here you can also change the name of your device eg "pond level", and put in your address if desired.
